plot methods that highlight years in fwdControl

plot methods that highlight years in fwdControl

plot method for FLStocks, fwdControl

# S4 method for class 'FLStock,fwdControl'
plot(x, y, fill = "#E69F00", ...)

# S4 method for class 'FLQuant,fwdControl'
plot(x, y, fill = "#E69F00", ...)

# S4 method for class 'FLQuants,fwdControl'
plot(x, y, fill = "#E69F00", ...)

# S4 method for class 'FLStocks,fwdControl'
plot(x, y, fill = "#E69F00", ...)

Arguments

x

FlStock object to plot

y

fwdControl from which to extract year ranges

fill

Colour to fill projection years background

...

Any other argument to be passed to [ggplotFL::plot]

Generic function

plot(x, y)

Examples

data(ple4)
control <- fwdControl(year=2008:2017, quant="f", value=0.3)
# No fwd projection took place, simply passing year range

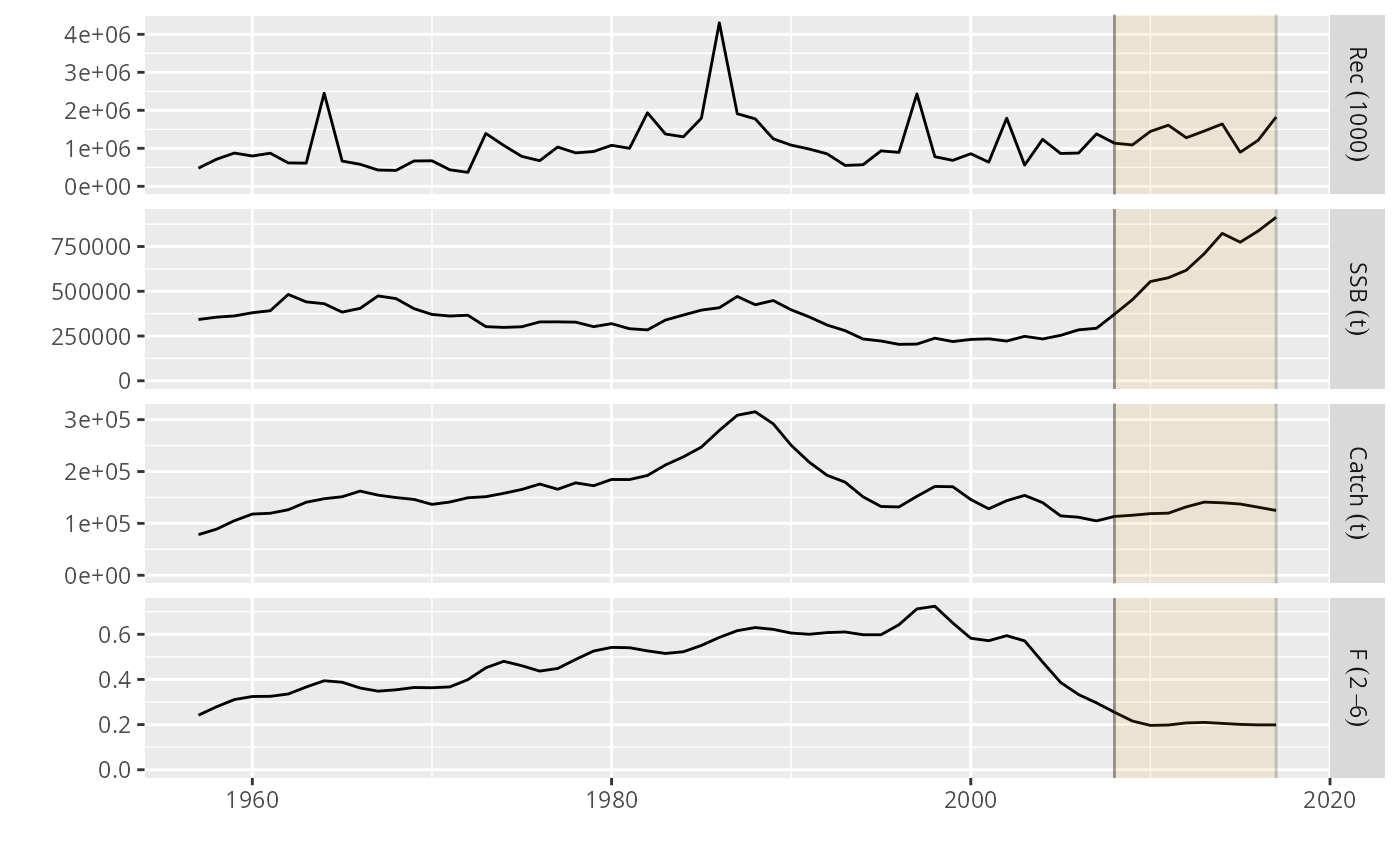

plot(ple4, control)

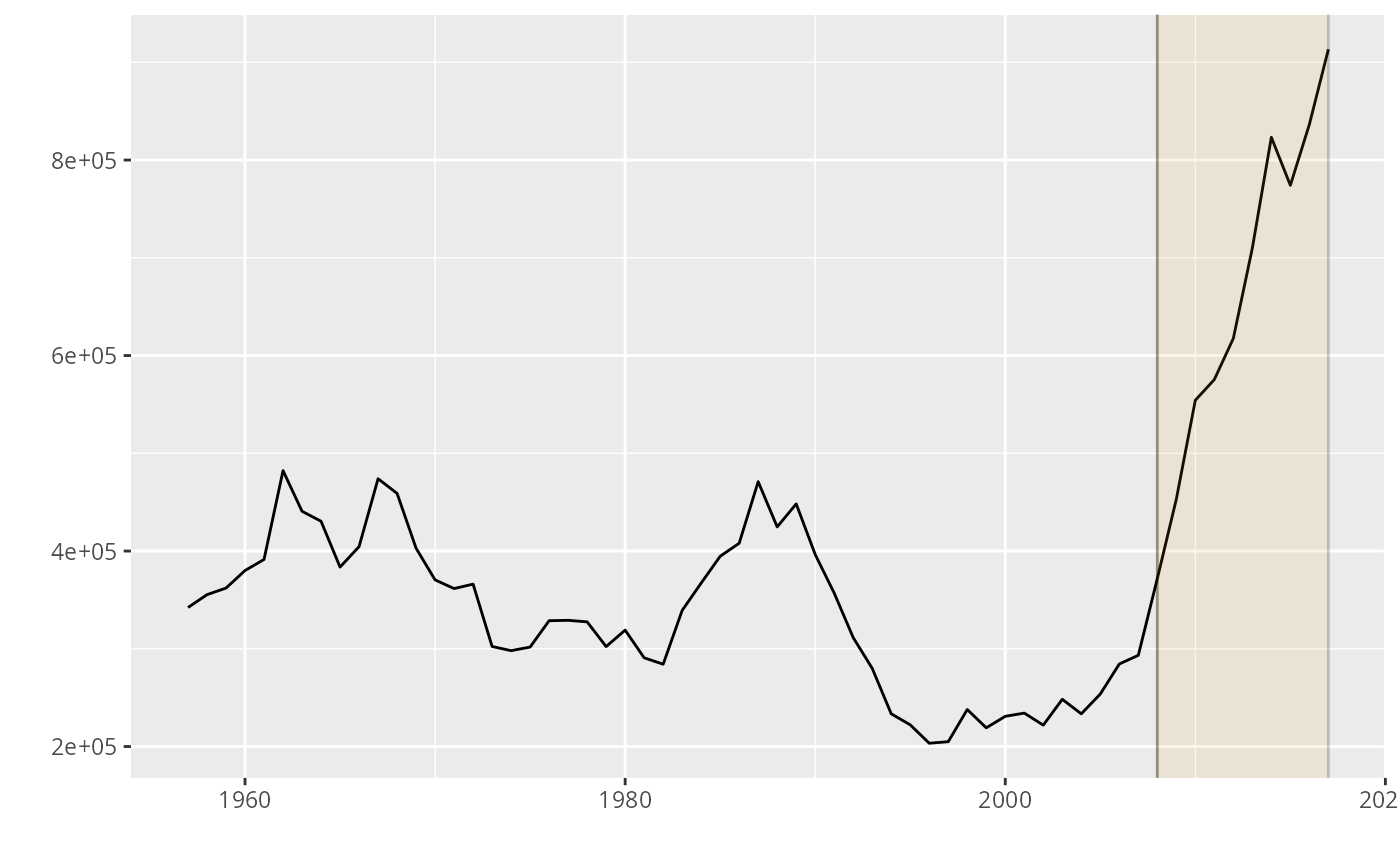

plot(ssb(ple4), control)

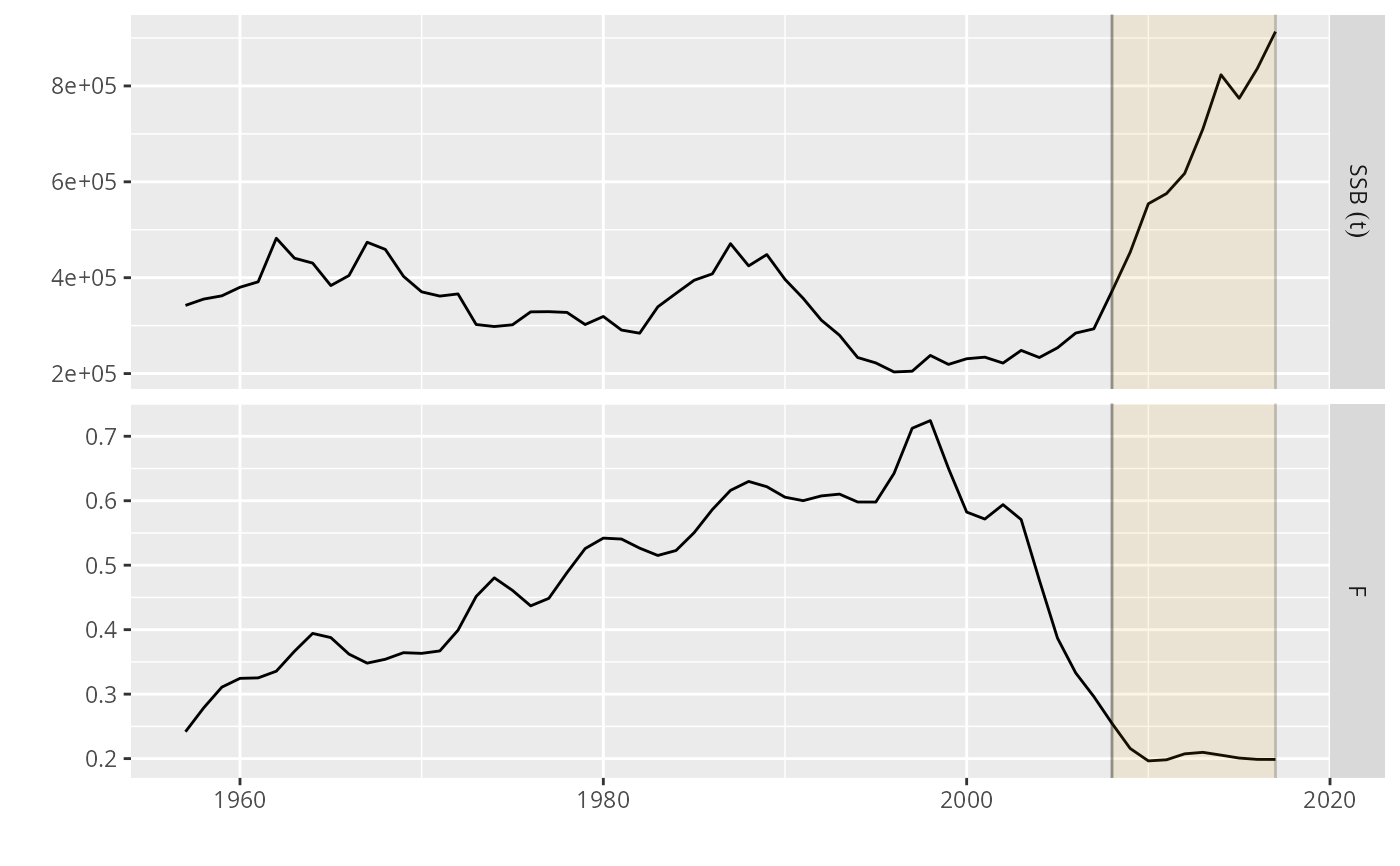

plot(FLQuants(SSB=ssb(ple4), F=fbar(ple4)), control)

data(ple4)
control <- fwdControl(year=2008:2017, quant="f", value=0.3)
# No fwd projection took place, simply passing year range
plot(FLStocks(PLE4=ple4), control)
